Flush Bottom Valves are specialized valves used in process industries for draining, sampling, and cleaning applications. These valves are designed to provide a flush connection with the bottom of tanks, vessels, or reactors, allowing for efficient and complete drainage of fluids or media. In this comprehensive guide, we will delve into the working principles, benefits, applications, and maintenance considerations of flush bottom valves. Whether you are an engineer, technician, or someone interested in industrial valves, this article will provide valuable insights into this important valve technology and its diverse range of applications.
Flush Bottom Valves, a critical component in various industrial processes, play a pivotal role in maintaining operational efficiency and safety. Engineered with precision and durability, these valves are designed to handle challenging conditions while ensuring seamless functionality. Let's delve deeper into their features, specifications, applications, and more.
Flush Bottom Valves come in a range of sizes to accommodate diverse industrial requirements. From compact designs for confined spaces to larger variants for heavy-duty applications, these valves offer versatility. Rated for high pressures and temperatures, they assure reliability under demanding operational conditions.
Robust Construction : Crafted from high-grade materials such as stainless steel, carbon steel, or exotic alloys, Flush Bottom Valves boast exceptional durability and resistance to corrosion.
Unique Design : The design includes a flush-mounted seat at the bottom, allowing complete drainage of the system, thus preventing fluid accumulation and contamination.
Precision Operation : Equipped with precision-engineered components, these valves ensure smooth operation, minimal leakage, and precise control over flow rates.

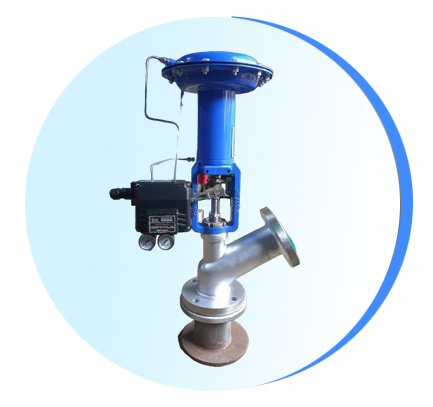

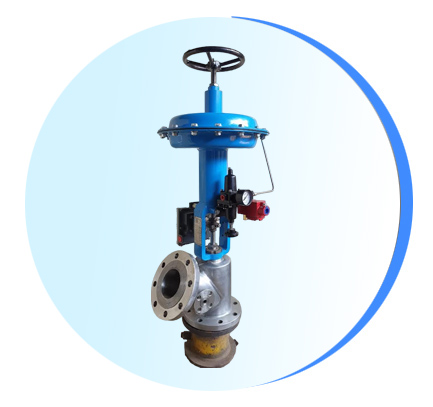

Versatile Actuation : Flush Bottom Valves can be operated manually, pneumatically, or electrically, providing flexibility according to process requirements.
Safety Features : Incorporating safety features like locking devices and emergency shut-off mechanisms enhances operational safety and prevents accidents.
Low Maintenance : With minimal moving parts and robust construction, these valves offer low maintenance requirements, reducing downtime and operational costs.
Control Valves are available in a variety of materials, including :
Stainless Steel (SS304, SS316, SS316L)
Duplex Stainless Steel
These materials are selected based on factors such as fluid compatibility, operating conditions, and industry standards, ensuring optimal performance and longevity.
Specifications may vary depending on the manufacturer and specific application requirements. However, common specifications include:
Pressure Rating : ANSI Class 150 to 2500, PN 10 to PN 420
Temperature Range : -50°C to 600°C (-58°F to 1112°F)
End Connection : Flanged, Butt Weld, Socket Weld
Size Range : 1/2" to 24" (DN15 to DN600)
Leakage Class : ANSI Class VI or tighter
Flush Bottom Valves find applications across diverse industries, including :
Food and Beverage
In these industries, Flush Bottom Valves are utilized for various purposes such as draining vessels, reactors, storage tanks, and pipelines, ensuring efficient operation and product quality.
