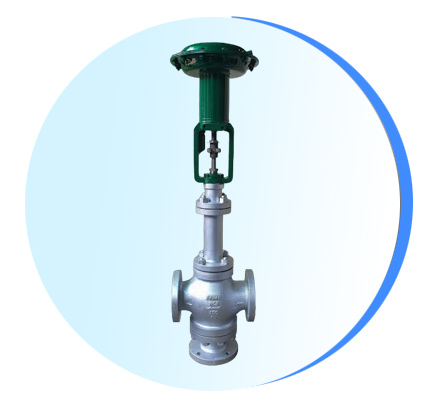

Globe Control Valves

Working Principles of Globe Control Valves -

Globe Control Valves operate based on the principle of a movable disk or plug that controls the flow of fluid through a seat. They consist of a valve body, actuator, disk or plug, and a stem. When the actuator receives a control signal, it moves the stem, which in turn adjusts the position of the disk or plug against the seat.

By positioning the disk or plug closer to or farther away from the seat, the flow area is either restricted or opened up, thereby controlling the flow rate. This throttling action enables precise regulation of fluid or gas flow to achieve the desired process conditions.

The valve body of Globe Control Valves is typically designed in a globe shape, which allows for a linear flow path, minimizing flow disturbances and providing accurate control. The valve's internal design, including the shape of the seat and disk or plug, is optimized for optimal flow control and minimal pressure drop.

Advantages of Globe Control Valves -

Globe Control Valves offer numerous advantages, making them a preferred choice for precise flow control in industrial processes. Some key advantages include:

a) Excellent throttling capabilities : Globe Control Valves provide superior throttling capabilities, allowing for precise regulation of flow rate. They offer fine control over process parameters, ensuring optimal process performance.

b) Accurate control across a wide range : These valves can effectively control flow rates across a wide range, from low to high flow rates, making them versatile for various process requirements.

c) Linear flow path : The globe-shaped body of these valves allows for a linear flow path, minimizing turbulence and providing accurate flow control. This design ensures consistent and stable control performance.

d) Wide material options : Globe Control Valves are available in various materials, including stainless steel, carbon steel, and special alloys, allowing compatibility with different process fluids and environments.

e) Low leakage rates : The design of Globe Control Valves ensures tight sealing between the disk or plug and the seat, resulting in low leakage rates. This enhances process efficiency and reduces the risk of product contamination or environmental concerns.

Applications of Globe Control Valves -

Globe Control Valves find applications in diverse industries where precise flow control is essential. Some common applications include:

a) Chemical processing : Globe Control Valves are widely used in chemical plants for regulating flow rates, pressure, and temperature in various chemical processes. They ensure accurate control and optimal process efficiency.

b) Oil and gas industry : These valves play a crucial role in the oil and gas sector for controlling the flow of fluids, such as crude oil, natural gas, and refined products. Globe Control Valves are used in pipelines, refineries, and production facilities to ensure safe and efficient operations.

c) Power generation : Globe Control Valves are employed in power plants, including thermal, nuclear, and renewable energy facilities, to regulate steam flow, condensate, and feed water. They contribute to the safe and efficient operation of power generation systems.

d) HVAC systems : Globe Control Valves are utilized in heating, ventilation, and air conditioning systems to control the flow of air or water
